EssentialsX Discord is a module that brings a simple, lightweight, easy-to-use, and bloat-freebridge between Discord and Minecraft.

EssentialsX Discord offers essential features you'd want from a Discord bridge such as:

MC Chat -> Discord Channel
Discord Channel -> MC Chat
Basic MC -> Discord Event Monitoring (Join/Leave/Death/Mute)
MC Console -> Discord Relay
Discord Slash Commands
- /execute - Execute console commands from Discord
- /msg - Message Minecraft players from Discord
- /list - List players currently online on Minecraft
& more...

Initial Setup

Console Relay

Configuring Messages

Receive Discord Messages in Minecraft

Discord Commands

Misc Permissions

Developer API

Initial Setup

Before starting your server, there are a few steps you have to take. First, you must create a newDiscord bot at discord.com/developers/applications.
Once on that page, click on "New Application" button on the top right, give your bot a name, andthen click "Create".

New Application -> Give Application a Name -> Create

Once you create the application, you'll be directed to its overview. From this screen, you'llneed to copy your "Application ID" and save it for a later step. To copy yourApplication ID, click the upper-left most blue "Copy" button. Make sure to save it for a later step.

Copy -> Paste into Notepad for later step

Optionally, you can set an icon for your application as it will be the icon for the bot too.

The next step is actually creating a bot user for your application. From the overview screen,this is done by going to the "Bot" tab on the left, then clicking the "Add Bot" on the right,and finally then clicking "Yes, do it!".

Bot -> Add Bot -> Yes, do it!

Once on this screen, you'll need to uncheck the "Public Bot" setting, enable all the "PrivilegedIntents", and then click "Save Changes". This prevents other people from adding your bot and alsoallows your bot to use more Discord features.

Uncheck Public Bot -> Check Presence Intent -> Check Server Members Intent -> Check Message Content Intent -> Save Changes`

Finally, you'll need to copy your bot's token and save it for a later step. To copy your bot's token,click the blue "Reset Token" button right of your bot's icon, then click "Yes, do it!", and finallyclick "Copy". Make sure to save it for a later step.

Reset Token -> Yes, do it! -> Copy -> Paste into Notepad for later step

Next up is adding your bot to your Discord server. First, go to essentialsx.net/discord.htmland paste your Client ID you copied from step 2 into the text box on that page. Once you do that, clickthe "Authorize" button next to the text box. This will redirect you to Discord's authorization websiteto chose which server to add the bot to.Note for advanced users: Please use the essentialsx.net link above even if you already know howto invite bots. EssentialsX Discord requires more than just the bot scope to work.

Paste Client ID -> Authorize

Once on the Discord authorization website, select the server from the "Select a server" dropdownthat you want to add the bot to. Then click the "Authorize" button. You may be prompted to confirmyou are not a bot, proceed with that like you would any other captcha.

Select Server -> Authorize

For the next few steps, you're going to need to do some stuff in Discord, so start up yourDiscord desktop/web client.
Once in your Discord client, you'll need to enable Developer Mode. Do this by going into theSettings, then go to the "Advanced" tab and check on the "Developer Mode" at the bottom of thepage. Once you've checked "Developer Mode" on, click the X at the top right to exit Settings.

User Settings -> Advanced -> Check Developer Mode -> Exit Settings

Next is copying a few IDs. First up, you'll want to copy the server (aka guild) id. Do this byfinding the server you added the bot to, right click its icon, and click "Copy ID". Once you copiedit, make sure to save it for a later step.

Right click server -> Copy ID -> Paste into Notepad for later step

The other ID you need to copy is the ID of the channel you wish to be your primary channel.In other words, this will be the channel that, by default, receives messages for player chat/join/leave/deathmessages as well as mute/kicks. To see how to further configure message types, see Configuring Messages.

Right click your 'primary' channel -> Copy ID -> Paste into Notepad for later step

You've successfully copied all the necessary IDs needed for a basic setup. Next up is generating thedefault config for EssentialsX Discord, so you can start setting it up! Do this by putting theEssentialsX Discord jar (you can download it here if you do notalready have one) in your plugins folder, starting your server, and then stopping it as soon as it finishesstarting up.

Drag EssentialsXDiscord jar into plugins folder -> Start Server -> Stop Server

Now you can start to configure the plugin with all the stuff you copied from earlier. Open the configfor EssentialsX Discord located at plugins/EssentialsDiscord/config.yml. When you open the config, thefirst thing to configure is your bot's token. Replace INSERT-TOKEN-HERE in the config with the token youcopied earlier from step 6.

Re-Copy Token from Step 6 -> Paste as token value

Next is the guild ID. Replace the zeros for the guild value in the config with the guild ID you copiedfrom step 13.

Finally, you'll need to paste the primary channel ID you copied from step 14 and paste it as theprimary value in the channels section and once you've done that save the config file!

Congratulations, you've completed the initial setup guide! When you start up your server, you shouldnotice that chat and other messages start showing up in the channel you requested they be. Now that youcompleted the initial, go back up to the Table Of Contents to see what other cool things you can do!

Console Relay

The console relay is pretty self-explanatory: it relays everything on your console into a Discord channel ofyour choosing. The console relay is ridiculously easy to set up and if your server is already running, you don'tneed to reload it!

This assumes you've already done the initial setup.
Go to the Discord server that your bot is in and find the channel you wish to use for console output.Right-click on the channel and click "Copy ID". Save this ID for the next step.

Find console channel -> Right Click -> Copy ID

Now that you have that copied, open the EssentialsX Discord config and find the console section. In thatsection, replace the zeros for the channel value with the channel ID you copied from the last step. Onceyou paste it, make sure you save the config.

Finally, if your server is running, run ess reload from your console, otherwise start up your server. Youshould notice console output being directed to that channel! That is all you need if you're okay with the defaultsettings. Otherwise, if you'd like to see what other options you can use to customize console output, stick around.

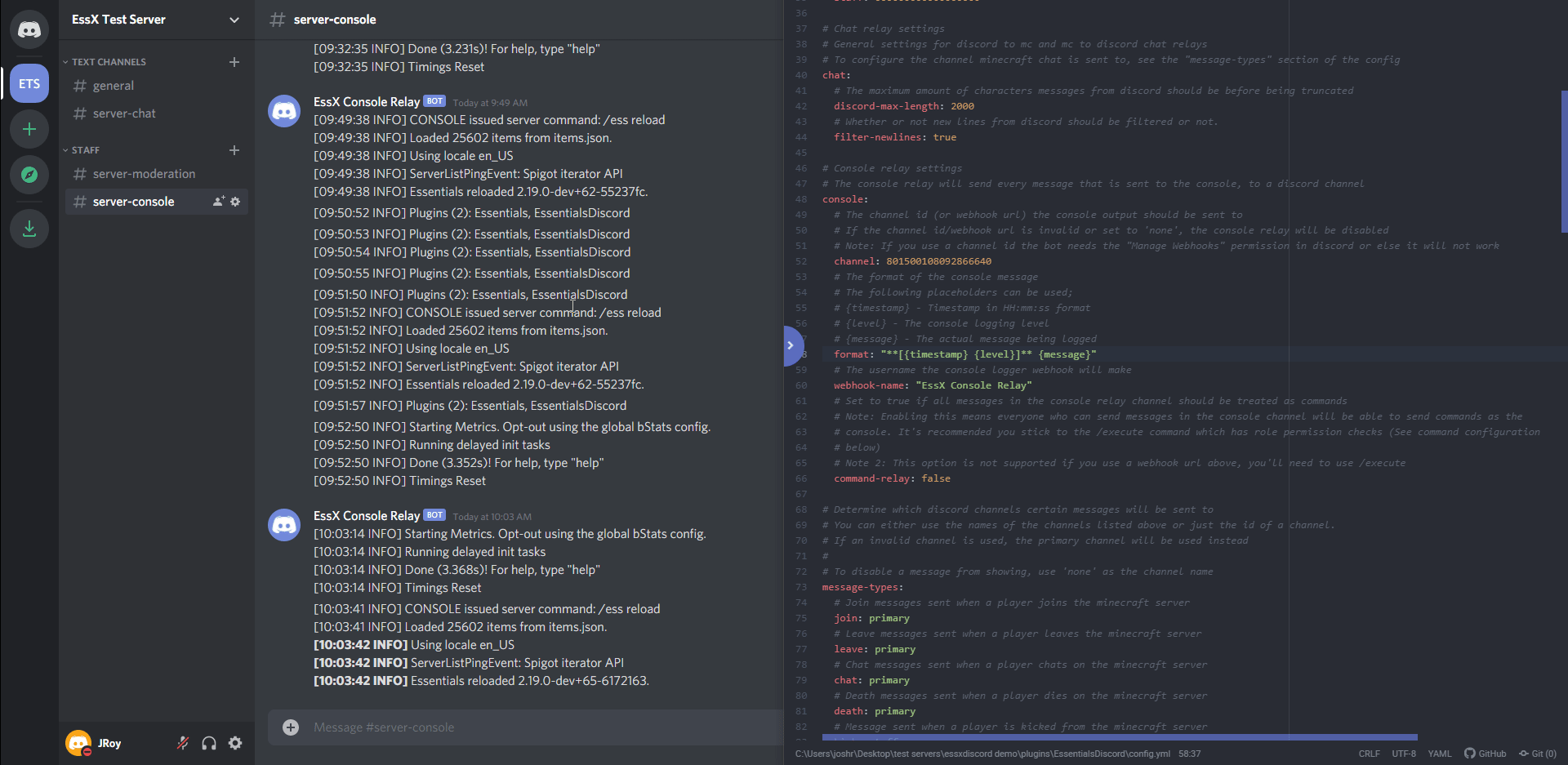

The first thing you can customize is the format of the message sent to Discord. By default, the timestamp,level (info/warn/error/etc.), and message are shown for each console message. Let's say you wanted to make thetimestamp and level bold: since this message would be using Discord's markdown, we can just add ** to both sides oflevel and timestamp. Then, once you've done that, just do /ess reload and you should see your changes on Discord.

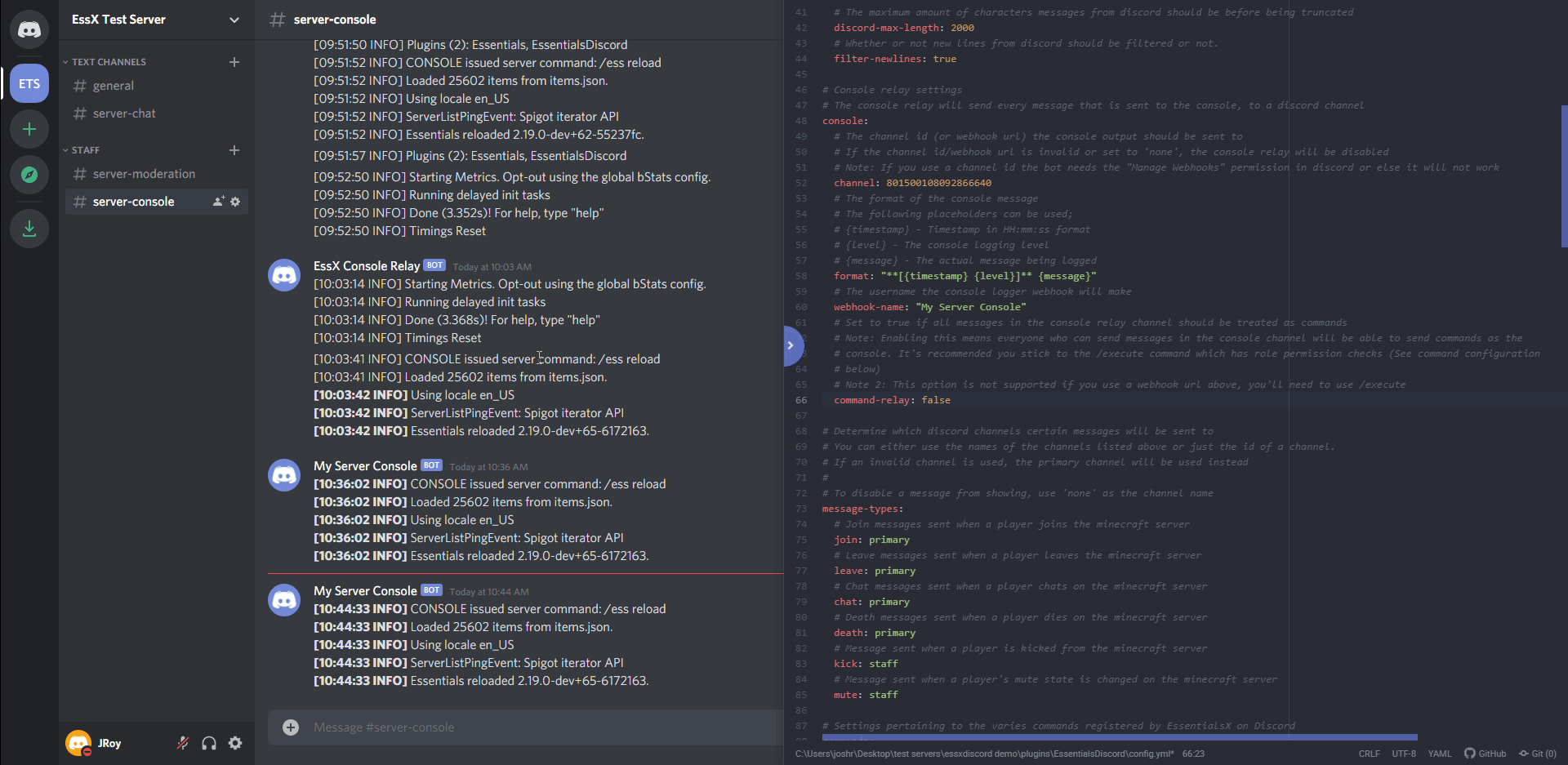

Next, you can also configure the name you wish the to show above console messages. By default, it's "EssX ConsoleRelay" but can be switched to anything you want.

Finally, you can also choose to enable an option to treat any message by a user in the console channel as aconsole command. This will mean that anyone who can send messages in your console channel will be able to executecommands as the console. It is suggested that you stick to the regular /execute command(see Discord Commands) as those can be restricted to specific roles/users and are also notrestricted to the console channel.

That's all the options for the command relay!

Configuring Messages

EssentialsX Discord aims to keep its message-type system basic enough that simple things take little changes, whilegiving more fine grain control to those you want it.

To give you a general overview of the system, EssentialsX Discord allows you to define different channel IDs in thechannels section of the config. By default, two channels are pre-populated in the channels section, primaryand staff. If you only completed the initial setup, the staff channel definition is all zeros. This is fine inmost situations however, as the message system will always fallback to the primary channel if a channel ID isinvalid.

Now on to the types of messages you can receive themselves (which is where you're going to use these channeldefinitions). In the message-types section of the config, you can see a list of message types (join/leave/chat/etc.)on the left (as the key), and on the right there is a channel definition.

For the sake of example lets say we want to send all chat messages to their own channel. We can do this by creatinga new channel definition and setting the chat message type to said channel definition. Below are step-by-stepinstructions for said example, you can follow along to get the gist of how to apply this to other use cases

Find the channel on Discord you want to only send chat messages to, and then right-click the channel and click"Copy ID".

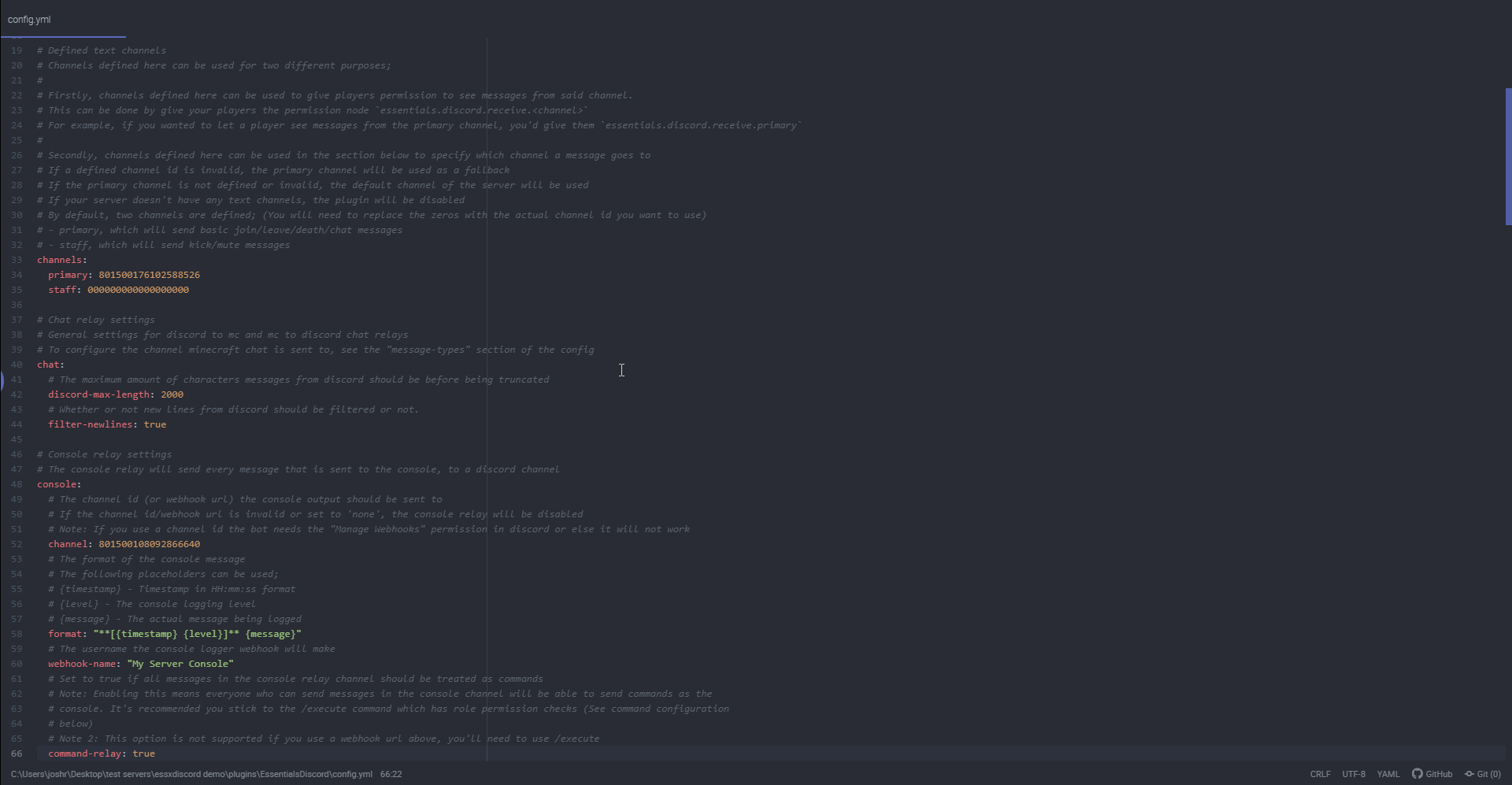

Next you need to create the actual channel definition, for this example we'll call it chat. You create achannel definition by adding a new entry to the channels section with the key as its name and the ID as the oneyou copied in the last step.

Finally, scroll down to the message-types section and change the chat message type to your newly createdchannel definition. Once you do that, save and either run /ess reload if your server is running or start yourserver.

That's all you need to know about the basics of the message system!

Receive Discord Messages in Minecraft

After reading the configuring messages section, you should now have a few Discordchannels defined in the channels of your config. You're probably wondering how you can let your players startto see messages from Discord in Minecraft chat. Say I defined a channel named chat in the channels sectionof your config, and I wanted to let players see Discord messages from that channel in Minecraft chat; This canbe accomplished very simply by giving players the essentials.discord.receive.chat permission. This would relayall Discord messages from the chat channel to players with that permission. Another example: say I have a staffchannel in Discord that I want only staff members in the Minecraft server to see. Provided there is a staffchannel defined in the channels section of the config, I can give staff members theessentials.discord.receive.staff permission, and they will start to see messages from that channel.

Discord Commands

EssentialsX Discord uses Discord's slash command system to let you type commands into Discord without it beingseen by other people in the server. With this system, you are able to execute console commands, message players,and see the current player list.

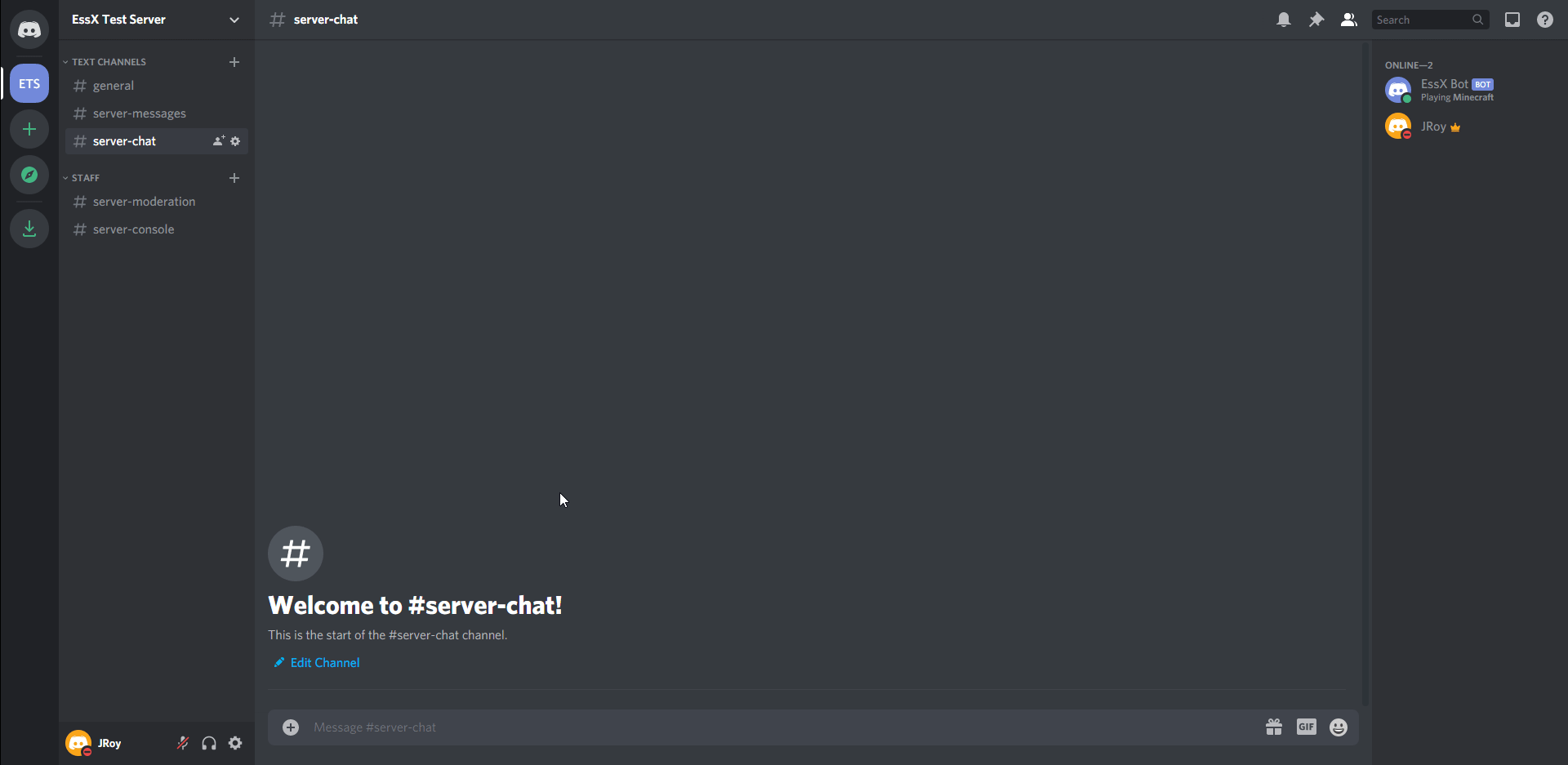

For example, here's what the /execute command looks like by default:

As you can see, you can seamlessly run commands without people seeing the content of your commands or theirresponse. Additionally, you can also delete the responses once you're done looking at them, so they don't clutteryour chat.

However, this is all configurable! In the commands section of the config, lies a ton of options to configuresettings on a per-command basis. Below are explanations of what all the configuration options mean and how to usethem.

enabled
- Default: true
- Description: Whether or not the command should be enabled and therefore shown on Discord. Note that you must restart your Minecraft server before this option takes effect.
hide-command
- Default: true

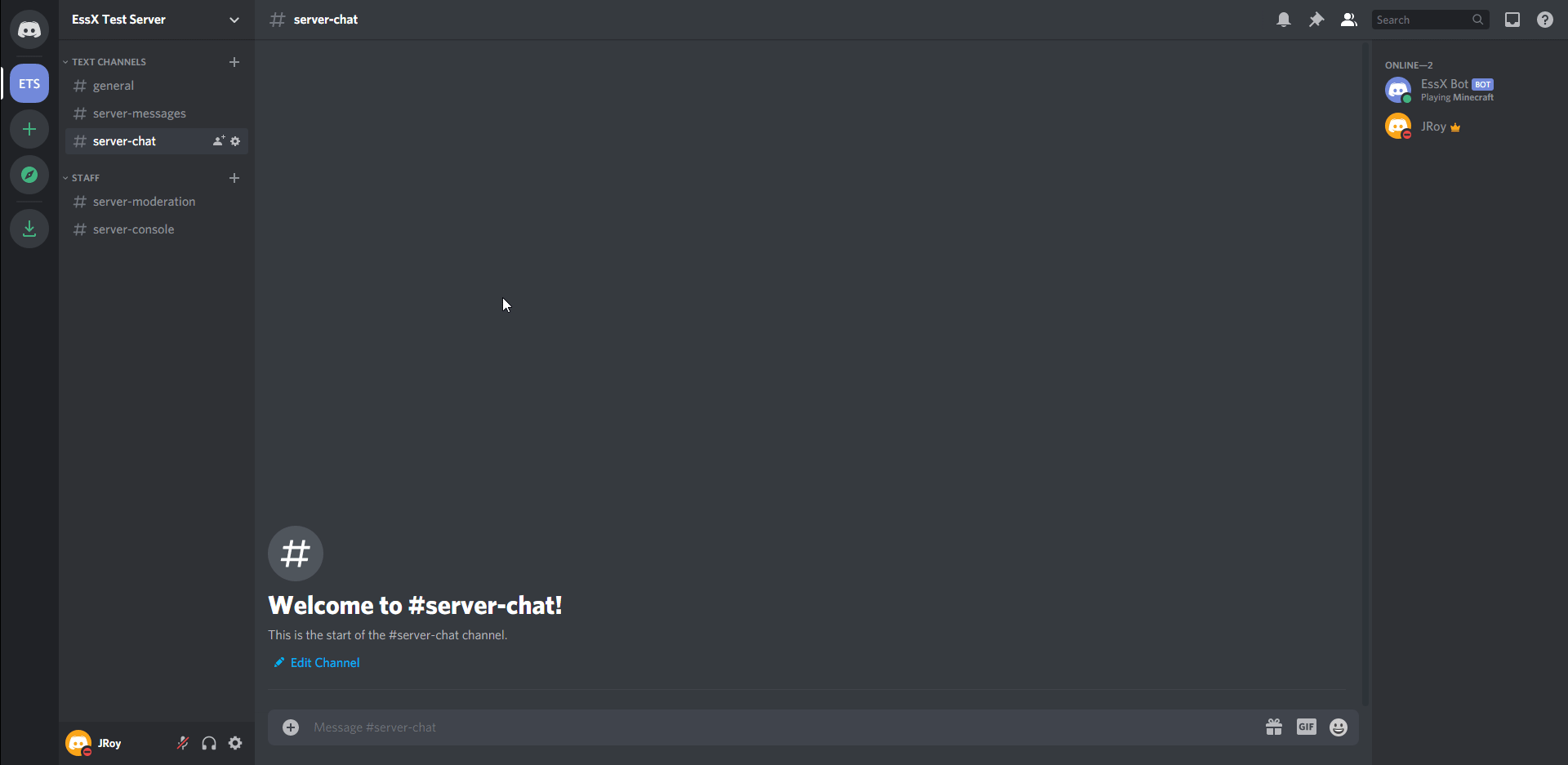

- Description: Whether other people should not be able to see what commands you execute. Setting to false would allow people in the same channel as you to see exactly what command you execute. In the example below, you can see how disabling this option shows a message of the user and the command they executed.
- Example:
allowed-roles
- Description: A list of user IDs or role names/IDs that are allowed to use the command. You can also use '*' in order to allow everyone to use the command.
admin-roles
- A list of user IDs or role names/IDs that have extra features in the command. For example, in the list command, admin-roles allows people to see vanished players.

Misc Permissions

EssentialsX Discord has a few other permissions that may be important to know about:

essentials.discord.markdown - Allows players to bypass the Markdown filter, so that they canbold/underline/italic/etc. their Minecraft chat messages for Discord.
essentials.discord.ping - Allows players to bypass the ping filter, so that they can ping @everyone/@herefrom Minecraft chat.

Developer API

EssentialsX Discord has a pretty extensive API which allows any third party plugin to buildtheir own integrations into it. Outside the specific examples below, you can also viewjavadocs for EssentialsX Discord here.

Sending Messages to Discord

EssentialsX Discord organizes the types of messages that can be sent along with theirdestination on Discord under the message-types section of the config.yml. TheEssentialsX Discord API uses message-types to resolve the channel id you want to send yourmessage to.

Using a built-in message channel

EssentialsX Discord defines a few built in message-types which you may fit your use casealready (such as sending a message to the MC->Discord chat relay channel). The list ofbuilt-in message types can be found at MessageType.DefaultTypes.

Here is an example of what sending a message to the built-in chat channel would look like:

// The built-in channel you want to send your message to, in this case the chat channel.final MessageType channel = MessageType.DefaultTypes.CHAT;// Set to true if your message should be allowed to ping @everyone, @here, or roles.// If you are sending user-generated content, you probably should keep this as false.final boolean allowGroupMentions = false;// Send the actual messagefinal DiscordService api = Bukkit.getServicesManager().load(DiscordService.class);api.sendMessage(channel, "My Epic Message", allowGroupMentions);

Using your own message channel

If you want to create your own message type to allow your users to explicitly separate yourmessages from our other built-in ones, you can do that also by creating a newMessageType.The key provided in the constructor should be the key you'd like your users to use in themessage-types section of our config. This key should also be all lowercase and may containnumbers or dashes. You can also put a Discord channel ID as the key if you'd like tohave your users define the channel id in your config rather than ours. Once you create theMessageType, you will also need to register it with Essentialsx Discord by callingDiscordService#registerMessageType.

Here is an example of what sending a message using your own message type:

public class CustomTypeExample { private final DiscordService api; private final MessageType type; public CustomTypeExample(final Plugin plugin) { // Gets the EssentialsX Discord API service, so we can register our type and // send a message with it later. api = Bukkit.getServicesManager().load(DiscordService.class); // Create a new message type for the user to define in our config. // Unless you're putting a discord channel id as the type key, it's probably // a good idea to store this object, so you don't create it every time. type = new MessageType("my-awesome-channel"); // Registers the type we just created with EssentialsX Discord. api.registerMessageType(plugin, type); } @EventHandler() public void onAwesomeEvent(AwesomeEvent event) { // Set to true if your message should be allowed to ping @everyone, @here, or roles. // If you are sending user-generated content, you probably should keep this as false. final boolean allowGroupMentions = false; // Send the actual message api.sendMessage(type, "The player, " + event.getPlayer() + ", did something awesome!", allowPing); }}

Prevent certain messages from being sent as chat

Depending on how your plugin sends certain types of chat messages to players, there may betimes when EssentialsX Discord accidentally broadcasts a message that was only intended for asmall group of people. In order for your plugin to stop this from happening you have tolisten to DiscordChatMessageEvent.

Here is an example of how a staff chat plugin would cancel a message:

public class StaffChatExample { private final StaffChatPlugin plugin = ...; @EventHandler() public void onDiscordChatMessage(DiscordChatMessageEvent event) { // Checks if the player is in staff chat mode in this theoretical plugin. if (plugin.isPlayerInStaffChat(event.getPlayer()) || // or we could check if their message started with a # if we use that // to indicate typing in a specific channel. event.getMessage().startsWith("#")) { event.setCanceled(true); } }}

Additionally, you can also look at TownyChat's EssentialsX Discord hook.

Registering a Discord slash command

EssentialsX Discord also allows you to register slash commands directly with Discord itselfin order to provide your users with a way to interface with your plugins on Discord!

To start writing slash commands, the first thing you'll need to do is create a slash commandclass. For the sake of this tutorial, I'm going to use an economy plugin as thehypothetical plugin creating this slash command.

For this slash command, I'll create a simple command to a string (for player name) andcheck their balance.

public class BalanceSlashCommand extends InteractionCommand { private final MyEconomyPlugin plugin = ...; @Override public void onCommand(InteractionEvent event) { // The name of the argument here has to be the same you used in getArguments() final String playerName = event.getStringArgument("player"); final Player player = Bukkit.getPlayerExact(playerName); if (player == null) { event.reply("A player by that name could not be found!"); return; } final int balance = plugin.getBalance(player); // It is important you reply to the InteractionEvent at least once as discord // will show your bot is 'thinking' until you do so. event.reply("The balance of " + player.getName() + " is quot; + balance); } @Override public String getName() { // This should return the name of the command as you want it to appear in discord. // This method should never return different values. return "balance"; } @Override public String getDescription() { // This should return the description of the command as you want it // to appear in discord. // This method should never return different values. return "Checks the balance of the given player"; } @Override public List<InteractionCommandArgument> getArguments() { // Should return a list of arguments that will be used in your command. // If you don't want any arguments, you can return null here. return List.of( new InteractionCommandArgument( // This should be the name of the command argument. // Keep it a single world, all lower case. "player", // This is the description of the argument. "The player to check the balance of", // This is the type of the argument you'd like to receive from // discord. InteractionCommandArgumentType.STRING, // Should be set to true if the argument is required to send // the command from discord. true)); } @Override public boolean isEphemeral() { // Whether the command and response should be hidden to other users on discord. // Return true here in order to hide command/responses from other discord users. return false; } @Override public boolean isDisabled() { // Whether the command should be prevented from being registered/executed. // Return true here in order to mark the command as disabled. return false; }}

Once you have created your slash command, it's now time to register it. It is bestpractice to register them in your plugin's onEnable so your commands make it in theinitial batch of commands sent to Discord.

You can register your command with EssentialsX Discord by doing the following:

...import net.essentialsx.api.v2.services.discord.DiscordService;...public class MyEconomyPlugin { @Override public void onEnable() { final DiscordService api = Bukkit.getServicesManager().load(DiscordService.class); api.getInteractionController().registerCommand(new BalanceSlashCommand()); }}
